Steep and unstable slopes, whether natural or man-made, pose significant safety and environmental risks. In geotechnical engineering, shotcrete has become a widely adopted method for surface stabilization and protection of slopes, particularly in combination with anchors, mesh, and drainage systems. This article explores the application methods, material components, and structural advantages of shotcrete in slope stabilization projects.
1.What is Shotcrete?
Shotcrete refers to concrete or mortar conveyed through a hose and pneumatically projected at high velocity onto a surface. It is applied either wet-mix or dry-mix, depending on the site conditions and desired performance. When used for slope stabilization, shotcrete adheres directly to rock or soil faces, forming a protective layer that resists weathering, erosion, and shallow slippage.
2.Methods of Application
3.Dry-Mix Shotcrete
- The dry concrete mix is transported to the nozzle where water is added.
- Advantages: Greater control of water content; useful in remote or small-batch jobs.
- Limitations: Higher rebound and dust generation.
Wet-Mix Shotcrete
- Pre-mixed concrete is pumped through the hose.
- Advantages: Less rebound, better quality control, and faster application.
- Preferred in large-scale or structural slope stabilization projects.
Robotic Application
- Mechanized arms improve safety and quality in large or hazardous slopes.
- Ensures uniform thickness and coverage in difficult terrains.
3.Key Materials Used in Shotcrete
| Component | Purpose |
| Cement | Binding agent for strength development |
| Aggregates | Usually fine-grained (sand, 4–10 mm coarse aggregate in structural shotcrete) |
| Water | Facilitates hydration; controlled water-cement ratio is critical |
| Admixtures | Accelerators, plasticizers, air-entraining agents to improve workability and set time |
| Steel or Polyfiber | Enhances tensile strength, ductility, and crack resistance |
In many slope stabilization cases, fiber-reinforced shotcrete is preferred for added durability and impact resistance.
4.Structural and Geotechnical Benefits
Surface Protection
- Forms an impermeable layer that resists surface erosion, weathering, and freeze-thaw cycles.
- Ideal for exposed soil, weathered rock, and debris-prone slopes.
Shallow Failure Prevention
- Resists raveling and small-scale sloughing, especially in layered or jointed rock masses.
- Functions as a structural skin when combined with mesh and anchors.
Load Transfer and Facing Element
- When paired with soil nails, rock bolts, or cable anchors, shotcrete acts as a facing layer, distributing and resisting tensile loads.
Rapid Deployment
- Useful in emergency slope protection (e.g., post-landslide remediation).
- Cures faster than conventional cast-in-place methods.
5.Applications in Slope Engineering
6.Road and Rail Cut Slopes

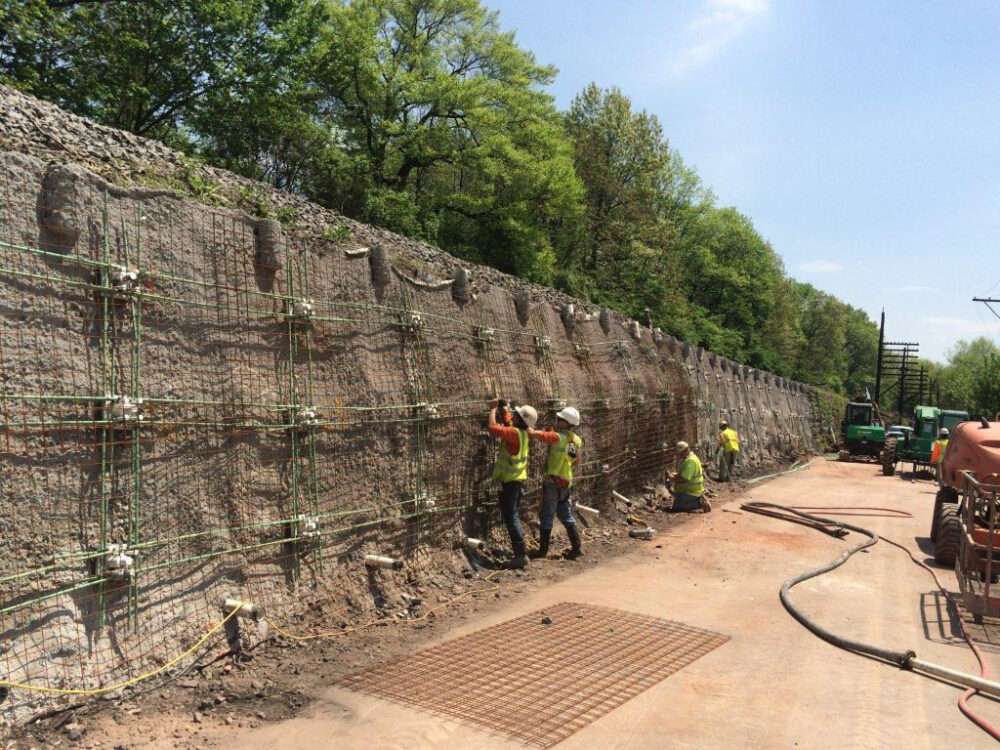

- Shotcrete is commonly applied to excavated slopes to prevent rockfall and erosion.
- Often combined with steel mesh, rock bolts, and drainage strips.
Urban Excavations
- Provides temporary or permanent facing for deep cuts in metropolitan areas.
- Used to stabilize slopes adjacent to infrastructure during construction.
Mine and Quarry Slopes
- Shotcrete is applied to pit walls and benches to prevent degradation and increase worker safety.
Tunneling Portal Stabilization
- Stabilizes portals by preventing loose rock or soil from collapsing during excavation startup.
6.Design Considerations
- Thickness: Typically ranges from 75 mm to 150 mm depending on expected loads and material type.
- Reinforcement: Welded wire mesh or fibers are embedded for strength and crack resistance.
- Drainage: Weep holes or strip drains must be integrated to relieve hydrostatic pressure behind the shotcrete layer.
- Bonding Surface: Rock or soil surfaces must be cleaned and roughened for proper adhesion.
7.Case Study: Stabilizing a Cut Slope Along a Mountain Highway
- Location: Western Ghats, India
- Problem: 20-meter-high road cut prone to minor rockfalls and surface erosion.
- Solution:
- Installed rock bolts at 2 m x 2 m spacing
- Applied 100 mm thick fiber-reinforced wet-mix shotcrete
- Added weep holes for drainage
- Outcome: Significantly reduced debris fall, no further erosion after monsoon season.
8.Limitations and Challenges
- Rebound and waste (especially in dry-mix applications)
- Not suitable for deep-seated slope failures without reinforcement
- Surface preparation is critical to avoid debonding
- Requires skilled labor and specialized equipment for consistent application
Conclusion
Shotcrete has proven to be an essential tool in modern slope stabilization for its versatility, rapid application, and structural effectiveness. Whether used alone for surface protection or as part of an integrated system with anchors and mesh, shotcrete enhances slope reliability and safety in a wide variety of geological settings.
As engineering standards evolve, innovations such as fiber-enhanced materials, robotic application, and real-time quality control will continue to improve the performance and efficiency of shotcrete in geotechnical applications.
