Introduction
Micropiles are high-performance deep foundation elements used extensively in new construction, underpinning, and rehabilitation projects, particularly in restricted-access and weak ground conditions. While design plays a critical role, the installation techniques and quality control measures adopted during construction are equally vital to ensure the intended performance, durability, and safety of micropile systems.
Overview of Micropile Construction
Micropiles are typically constructed by drilling a small-diameter borehole, installing steel reinforcement, and grouting the hole to form a composite load-bearing element. Depending on site conditions and design requirements, various drilling and grouting techniques are employed.
Installation Techniques of Micropiles

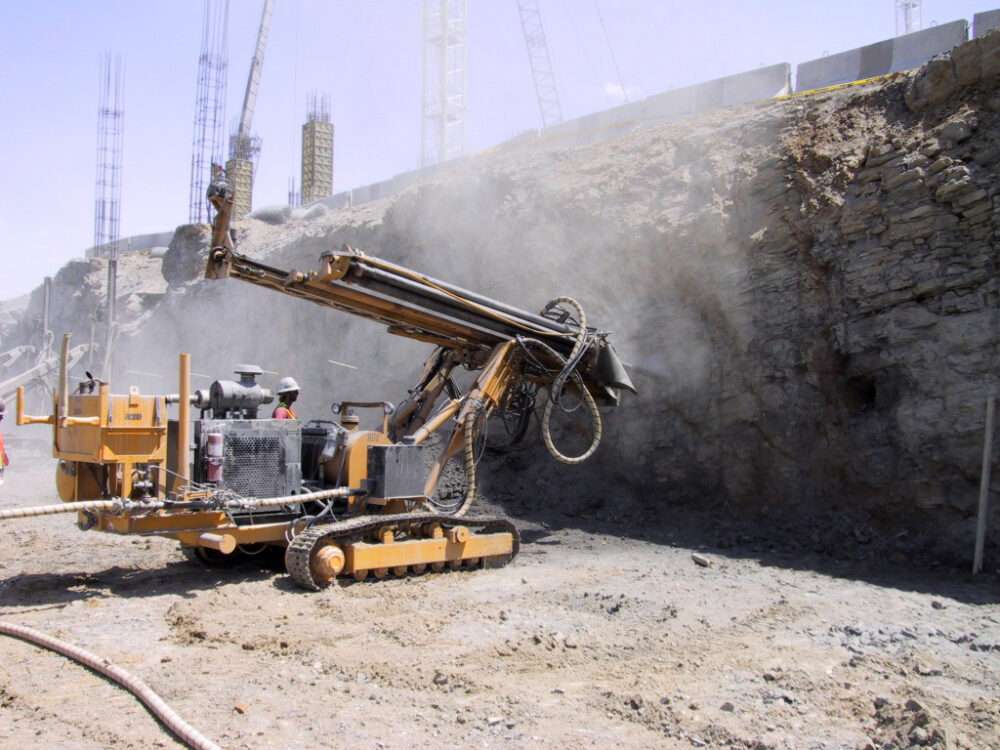

1. Drilling Methods
The choice of drilling method depends on soil conditions, access constraints, and groundwater presence.
Rotary Drilling: Suitable for most soil and rock types with minimal vibration.
Percussion Drilling: Effective in hard rock formations.
Rotary-Percussive Drilling: Combines both methods for mixed ground conditions.
Casing-Advanced Drilling: Prevents borehole collapse in loose or saturated soils.
Proper alignment and depth control during drilling are essential for effective load transfer.
2. Borehole Stabilization
In unstable soils, boreholes may require:
Temporary or permanent casing
Drilling fluids or air flush systems
These measures maintain borehole integrity and ensure proper grout placement.
3. Reinforcement Installation
Reinforcement options include:
Central steel bars or threaded rods
Steel casing acting as structural reinforcement
Multiple bars or tubes for higher load demands
Correct positioning and adequate grout cover are crucial for structural capacity and corrosion protection.
4. Grouting Techniques
Grouting is a key factor influencing micropile performance.
Gravity Grouting: Suitable for stable soils and low-load applications.
Pressure Grouting: Improves grout–ground bond and load capacity.
Post-Grouting / Multiple-Stage Grouting: Enhances capacity in weak or loose soils.
Grout mix design, pressure control, and volume monitoring are essential.
5. Inclined and Batter Micropiles
Micropiles may be installed vertically or at an inclination to resist lateral loads. Accurate angle control and alignment are required to meet design assumptions.
Quality Control Measures for Micropile Systems
1. Material Quality Control
Verification of cement type, water–cement ratio, and additives
Inspection of steel reinforcement grade and dimensions
Corrosion protection system compliance
2. Construction Monitoring
Recording drilling depth, diameter, and alignment
Monitoring grout pressure and volume
Observing grout returns and refusal criteria
Daily construction logs are critical for traceability.
3. Load Testing and Performance Verification
Compression and Tension Load Tests: Confirm axial capacity
Lateral Load Tests: Verify lateral resistance
Proof and Verification Tests: Validate design assumptions
Instrumentation such as strain gauges may be used to study load transfer behavior.
4. Integrity and Alignment Checks
Visual inspection of reinforcement placement
Confirmation of grout continuity
Verification of pile head elevation and connection to caps or beams
5. Documentation and Acceptance Criteria
Comparison of field records with design requirements
Review of test results and compliance reports
Final acceptance based on specified performance criteria
Common Installation Challenges and Mitigation
Borehole collapse: Use casing or drilling fluids
Grout loss: Adjust grout mix or adopt stage grouting
Misalignment: Employ proper guides and surveying controls
Inadequate bond: Increase grouting pressure or pile length
Conclusion
The successful performance of micropile systems depends not only on sound design but also on precise installation and rigorous quality control. Proper selection of drilling and grouting techniques, combined with continuous monitoring and testing, ensures that micropiles achieve their intended load capacity, durability, and reliability. Adherence to best construction practices and quality standards is essential for safe and economical foundation solutions.
