Grouting is an important process in building construction that involves injecting a liquid called Grout into the ground to solve various problems and increase the stability and strength of the structure. The content offers an in-depth look at six types of grouting, each tailored to specific applications in the construction industry.
Introduction:
Grouting is a fundamental construction technique that involves the injection of a fluid material, commonly known as grout, into the subsurface to fill voids, consolidate soil, stabilize structures, and address various engineering challenges. This versatile method has several types, each tailored to specific applications. In this comprehensive exploration, we will delve into the intricacies of Tam grouting, permeation grouting, jet grouting, rock fissure grouting, consolidation grouting, and compaction grouting.
1. Tam Grouting:
Definition:
Tam grouting, also known as tremie grouting, is a specialized method where grout is injected underwater using a tremie pipe. This technique is employed in situations where the presence of water complicates conventional grouting methods.
Process:
- A tremie pipe, sealed at the bottom, is lowered to the target depth underwater.
- Grout is poured into the tremie pipe from the top.
- As the tremie pipe fills with grout, it displaces the water and prevents its ingress.
- Grout is then injected into the subsurface, displacing water and filling voids.
Applications:
Tam grouting is commonly used in underwater construction, such as repairing underwater structures, creating impermeable barriers in dams, and stabilizing foundations in marine environments.
2. Permeation Grouting:
Definition:
Permeation grouting, also known as pressure grouting or compaction grouting, is a method where a low-viscosity grout is injected into the soil under pressure. The injected grout permeates through the soil, compacting it and improving its load-bearing capacity.
Process:
- Injection pipes are inserted into the soil at predetermined intervals.
- Low-viscosity grout is injected into the soil under high pressure.
- The grout permeates through the soil, compacting it and filling voids.
- The pressure is maintained until the desired improvement is achieved.
Applications:
Permeation grouting is widely used in foundation repair, soil stabilization, and improving the bearing capacity of loose or soft soils. It is an effective method for mitigating settlement issues in structures.
3. Jet Grouting:
Definition:

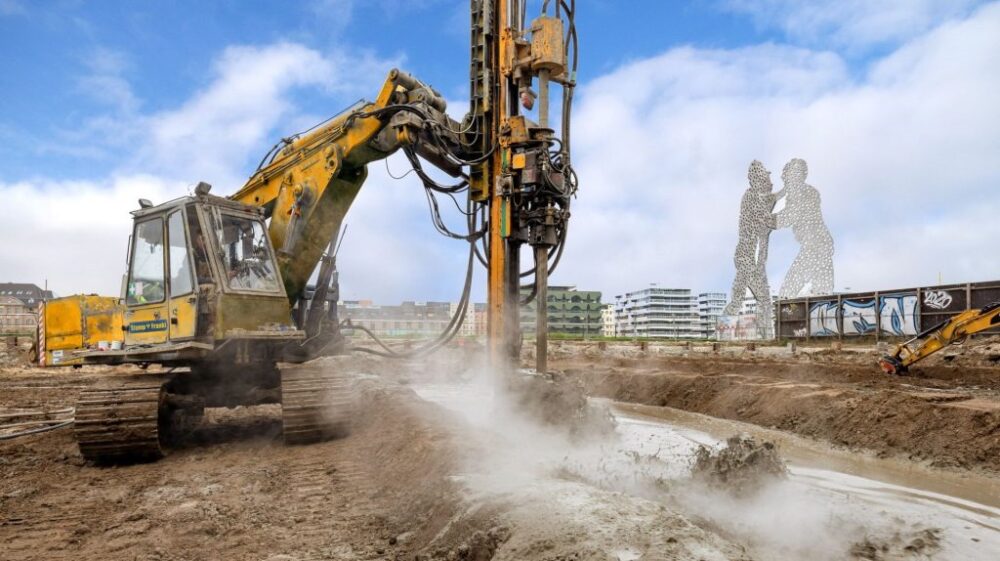

Jet grouting is an advanced grouting technique that involves the use of high-pressure jets to mix and inject grout into the soil. This method is versatile and can be used in various soil conditions, making it suitable for a wide range of applications.
Process:
- High-pressure jets are used to erode and mix the soil.
- Simultaneously, grout is injected into the soil through the jets.
- The combination of soil erosion and grout injection creates a homogenous, cemented mass.
- The process can be adjusted to create different patterns and structures.
Applications:
Jet grouting is employed in creating underground barriers, stabilizing slopes, and forming retaining walls. Its adaptability makes it suitable for challenging soil conditions encountered in construction projects.
4. Rock Fissure Grouting:
Definition:
Rock fissure grouting, also known as permeation grouting in rock, is a specialized technique designed to fill voids and fractures in rock formations. This method is crucial for stabilizing rock structures and enhancing their integrity.
Process:
- Injection holes are drilled into the rock at predetermined intervals.
- Low-viscosity grout is injected into the rock under high pressure.
- The grout permeates through rock fissures, filling voids and stabilizing the structure.
- The process is monitored to ensure complete filling of voids.
Applications:
Rock fissure grouting is commonly employed in tunnel construction, mine support, and stabilizing natural rock formations. It is vital for preventing rockfalls and ensuring the safety of underground structures.
5. Consolidation Grouting:
Definition:
Consolidation grouting is a technique used to improve the strength and stability of granular soils by injecting grout under pressure. This method is particularly effective in addressing settlement issues and enhancing the load-bearing capacity of loose soils.
Process: to the veccant on of the maintain to be procured by the giving the rules and regulation by the basics of the gaining traffic to the system
- Injection pipes are inserted into the soil at specified depths.
- Grout, often a cementitious material, is injected under pressure.
- The injected grout permeates through the soil, consolidating loose particles.
- The process is monitored to achieve the desired improvement in soil density.
Applications:
Consolidation grouting is commonly employed in ground improvement projects, foundation repair, and mitigating settlement issues in buildings and infrastructure. It is instrumental in increasing the load-bearing capacity of loose or weak soils.
6. Compaction Grouting:
Definition:
Compaction grouting is a technique used to densify loose soils by injecting a low-mobility grout into the subsurface. This method is particularly effective in addressing settlement issues and improving the overall stability of structures.
Process:
- Injection pipes are drilled into the soil at predetermined locations.
- Low-mobility grout is injected into the soil under high pressure.
- The grout displaces and compacts the surrounding soil.
- The process is adjusted to achieve the desired soil density and load-bearing capacity.
Applications:
Compaction grouting is widely used in ground improvement projects, foundation repair, and addressing settlement issues in buildings and infrastructure. It is effective in stabilizing loose or poorly compacted soils.
Conclusion:
Grouting, in its various forms, is an indispensable construction technique that addresses a myriad of challenges encountered in civil engineering projects. From stabilizing foundations to mitigating settlement issues, the diverse types of grouting offer tailored solutions for different applications. Understanding these grouting techniques allows engineers and construction professionals to choose the most appropriate method for specific project requirements, ensuring the longevity and safety of structures in a wide range of environments.
