Slope stability is a critical concern in geotechnical and civil engineering, especially in areas prone to landslides, rockfalls, or other ground movements. One of the most effective structural solutions employed in slope engineering is the use of cable anchors. These tensioned reinforcement elements provide targeted support to unstable slopes, improving their overall stability and safety. This article explores the role of cable anchors in slope engineering, their design principles, installation methods, and practical applications.
Understanding Cable Anchors
Cable anchors, also known as ground anchors or rock bolts when in smaller sizes, are high-strength steel cables or tendons that are drilled into a slope and anchored into stable ground or rock formations. Once tensioned and fixed, they apply compressive forces that counteract the destabilizing forces causing slope movement.
Cable anchors differ from traditional soil nails or shorter rock bolts by their length, diameter, and load capacity, enabling them to stabilize deeper and larger unstable masses.
Structural Role of Cable Anchors
Cable anchors act as structural reinforcement by:
- Providing Tensile Strength: They carry tensile loads that resist sliding and overturning forces in unstable slopes.
- Increasing Shear Resistance: By anchoring unstable blocks to stable strata, cable anchors enhance the shear strength of the slope materials.
- Reducing Deformations: Tensioning the cables compresses the soil or rock, minimizing displacement and deformation.
- Improving Overall Slope Integrity: Anchored slopes behave more like reinforced composite systems, combining natural materials and engineered reinforcements.
Design Considerations
Effective use of cable anchors in slope engineering involves detailed design and analysis:
- Geotechnical Investigation: Understanding the slope’s geology, soil and rock properties, groundwater conditions, and failure mechanisms is essential.
- Load Calculations: Engineers determine the tensile forces required to stabilize the slope using limit equilibrium or numerical modeling methods.
- Anchor Length and Diameter: These depend on the depth of stable strata and expected load. Cable anchors can extend tens of meters into the ground.
- Corrosion Protection: Given the exposure to aggressive environments, anchors are often coated, galvanized, or grouted for durability.
- Monitoring and Maintenance: Installation includes provisions for tension monitoring and re-tensioning if necessary.
Installation Techniques
Cable anchor installation typically involves:
1.Drilling: Creating a borehole along the designed alignment into stable rock or soil.
2.Insertion: Placing the cable tendon into the hole.
3.Grouting: Injecting cement grout around the cable to bond it with surrounding material and protect against corrosion.
4.Tensioning: Applying the designed pre-tension to the cable anchor to activate its stabilizing effect.
5.Fixing: Securing the cable at the slope surface with bearing plates and anchor heads.
Modern installation uses self-drilling anchors for faster and more efficient deployment, particularly in difficult ground conditions.
Practical Applications
Cable anchors have been successfully used in a variety of slope engineering projects:
- Highway and Railway Cuttings: Stabilizing rock faces and soil slopes along transport corridors to prevent rockfalls and landslides.
- Reservoir and Dam Slopes: Enhancing the safety of slopes adjacent to water bodies where slope failure could have catastrophic consequences.

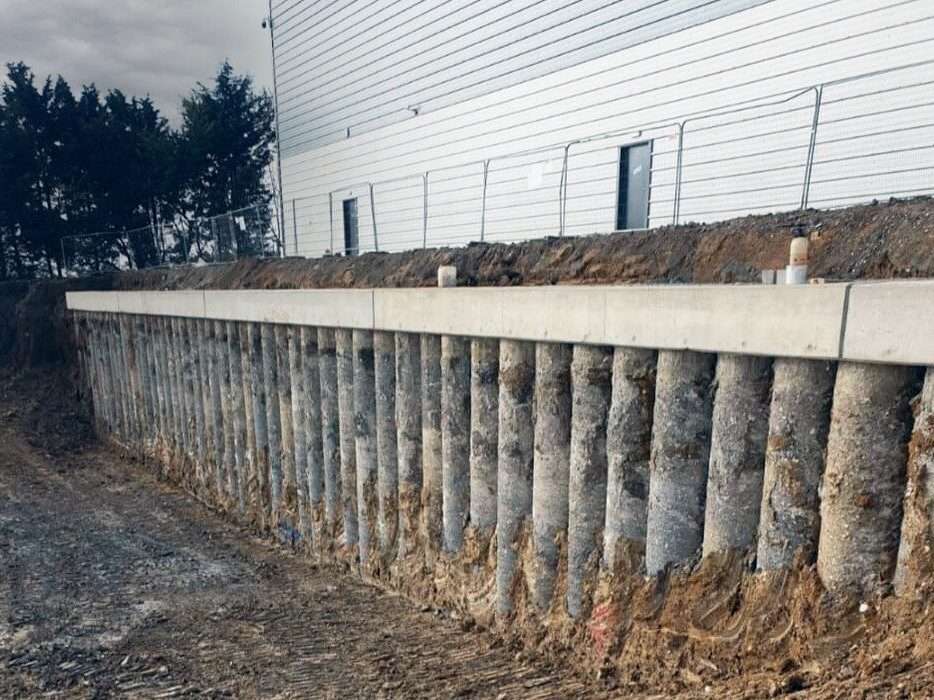

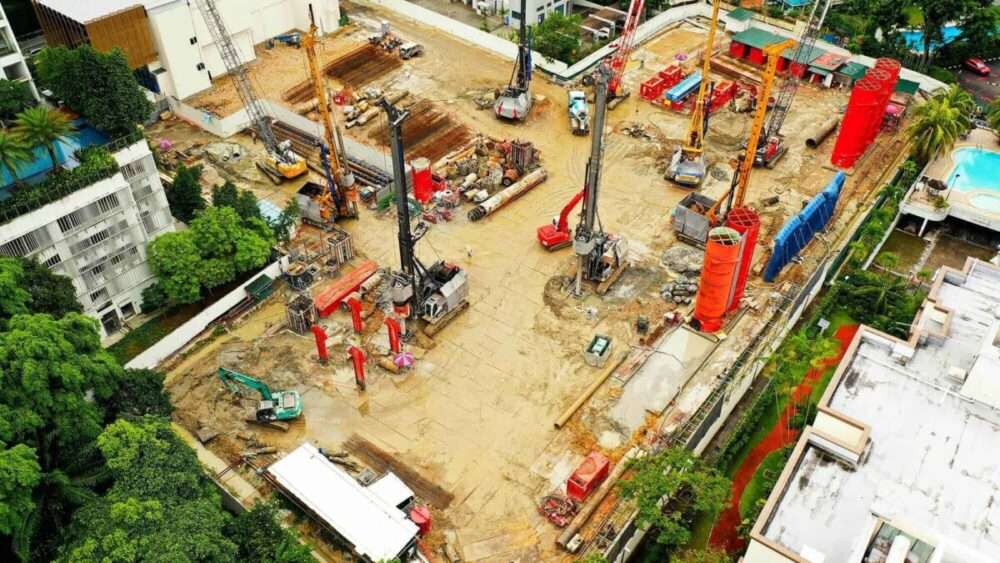

- Urban Excavations: Supporting deep excavations in densely built areas by anchoring retaining walls or slope faces.
- Mining and Quarrying: Stabilizing pit slopes and highwalls to protect workers and equipment.
Advantages of Cable Anchors
- High Load Capacity: Suitable for stabilizing large and deep-seated slope failures.
- Flexibility: Can be designed for varied soil and rock conditions.
- Minimal Surface Disturbance: Installation requires only small boreholes and limited excavation.
- Cost-Effective: Provides a durable and long-term solution, reducing the need for extensive earthworks.
Challenges and Limitations
- Complex Design Requirements: Accurate geotechnical data and advanced modeling are essential.
- Installation Risks: Drilling in unstable or fractured rock requires careful planning and safety protocols.
- Maintenance Needs: Over time, anchors may require inspection and re-tensioning.
- Environmental Constraints: Access and impact on sensitive areas must be managed.
Conclusion
Cable anchors represent a vital structural tool in slope engineering, offering a reliable and efficient method for stabilizing unstable slopes. Their ability to transfer tensile forces deep into stable ground allows engineers to tackle challenging geotechnical problems with precision. When combined with complementary measures such as shotcrete, drainage systems, and surface protection, cable anchors contribute significantly to comprehensive slope stabilization strategies that protect infrastructure and communities.
